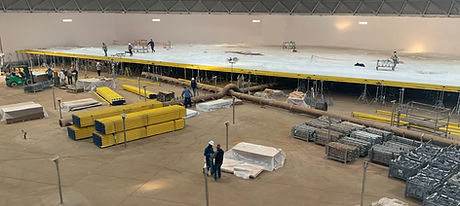

NXT-FC-IFR GRP full-contact internal floating roof installed inside an aboveground storage tank

NXT-FC-IFR

NXT-FC-IFR installation completed

GRP / GRE  Full-Contact Internal Floating Roof

Application-specific internal floating roof technology for safe, reliable and low-emission operation of covered aboveground storage tanks.

Introduction
NXT-FC-IFR is a GRP / GRE full-contact internal floating roof designed for covered aboveground storage tanks. The roof floats in direct contact with the stored liquid and is engineered to eliminate vapor space, improve emission performance and support reliable tank operation.

​

Each NXT-FC-IFR is designed according to the actual tank geometry, stored product, operating conditions and project requirements. The composite construction is selected for the chemical environment of the application.

​

Installation is performed inside the tank by WLI’s qualified field service team using a site-built GRP construction method.

Engineering / Construction

Site-built composite construction with project-specific material selection.

Honeycomb core material used for NXT-FC-IFR GRP composite internal floating roof construction
Site-built GRP lamination work for NXT-FC-IFR internal floating roof construction

Key Performance Features

Technical Aspects

  • GRP / GRE full-contact internal floating roof design

  • Application-specific engineering based on tank geometry and operating requirements

  • Application-specific GRP / GRE composite construction based on stored product and chemical environment

  • Composite construction without coating systems required for corrosion protection

  • Integration of rim seals, vents, supports, drains and other floating roof accessories

  • Compatible with WLI ONE rim seal technology



Operational Aspects​

  • Designed for maintenance-free operation of the composite roof structure under specified service conditions

  • No corrosion-related coating maintenance compared with carbon steel roof structures

  • Full-contact design to eliminate the vapor space below the roof

  • Low-profile construction to support available tank working capacity

  • Project-specific evaluation for stored product changes and future operating scenarios



Emission Control

  • Full-contact floating roof concept for improved emission reduction performance

  • Designed to support compliance with applicable air emission regulations

  • Compatible with high-performance rim seal solutions for reduced rim-space vapour losses

  • Emission calculations and improvement assessments available as part of WLI engineering services

​​

Safety and Reliability

  • Engineered for reliable floating behaviour under project-specific operating conditions

  • Composite material selection according to chemical and operational requirements

  • Anti-static design concept

  • Suitable for integration with roof accessories required for safe tank operation

  • Documentation available for engineering review, inspection and project handover

​

Project Execution

  • Site-built installation inside the tank

  • Turnkey installation service by experienced and qualified WLI field personnel

  • Project planning and shutdown coordination support

  • Installation possible in new-build and retrofit projects

  • As-built documentation after completion

  • Engineering support from concept evaluation to final installation

Accessories / Integration

Integrated accessories for NXT-FC-IFR internal floating roof including vents, manway cover and rim seal component

Integrated floating roof accessories are selected and engineered according to the tank configuration and operating requirements.

Integrated accessories for NXT-FC-IFR internal floating roof including vents, manway cover and rim seal component
